LM324 quad op amp dip ic kit with pcb (#1390)
LM324 Quad Op Amp DIP IC Kit with PCB (#1390)

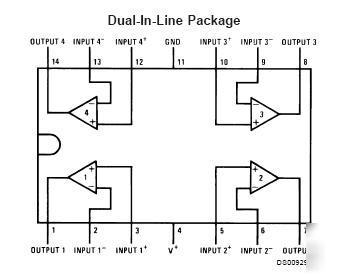

This is the popular LM324 Quad Op Amp DIP IC Design Kit with PCB. It has 6 pieces of the very popular LM324, Quad Op Amp in the DIP-14 package (with leads). This IC contains 4 independent Op Amps, just use the ones you need.
This kit also includes different values of 1/4 Watt Carbon-Film Resistors, Aluminum & Ceramic & Tantalum Capacitors, NPN & PNP Transistors, Signal & Power & Zener Diodes, Trimpots, LEDs, Pushbutton Sitches, Resettable Fuses, EMI Filters, and some Electronic Hardware for your I/O Interface.
With these parts, you can make numerous circuits, such as active filters, pre-amps, signal conditioners, function generators and much more. There are no SMT components in this kit. Search the web for incredible circuits to build. The Datasheets and Application Notes for the ICs and Transistors, along with hundreds of others, are located at DATASHEETS. We supply the parts, you supply the ingenuity. You get the following:
LM324, Quad Op Amp, Single-Supply, DIP-14
2N3904, NPN, General Porpuse Amplifier, TO-92
2N3906, PNP, General Porpuse Amplifier, TO-92
14 Pin, Solder Tab, Low Profile
1N4148, Silicon, Switching, Signal
1N4001, 100V, 1 Amp, Rectifier
1N4007, 1000V, 1 Amp, Rectifier
1,0K, Single-Turn, Thru-Hole, PCB Mount
