Leistritz 110MM twin screw extruder 20:1 counter 150 hp
Make an offer!!! Or email ****@gmail.com and we can start talking.

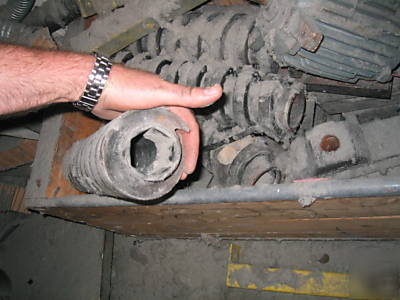

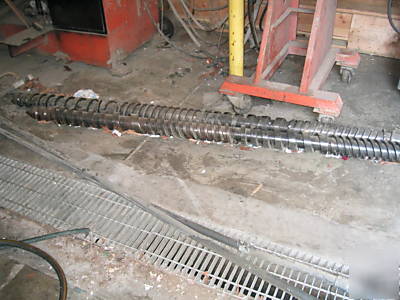

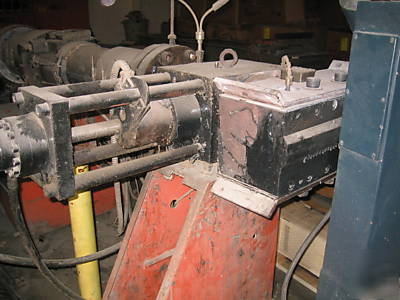

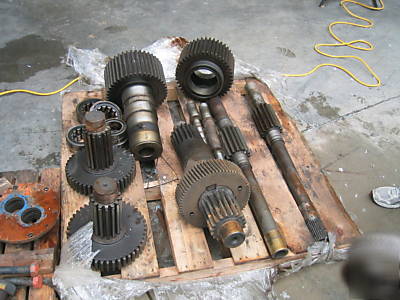

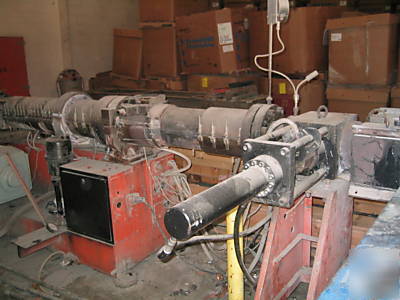

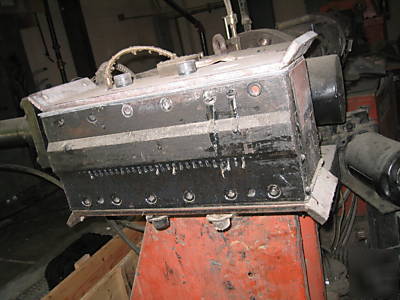

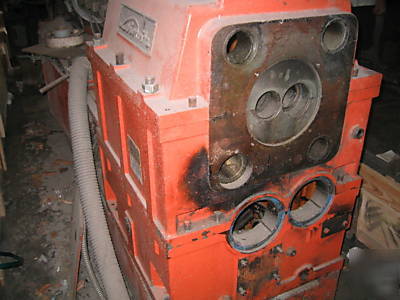

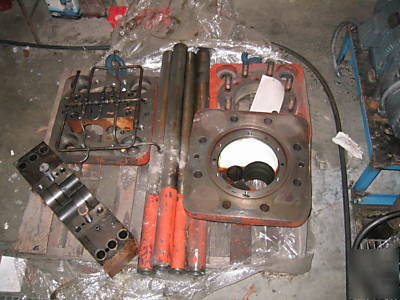

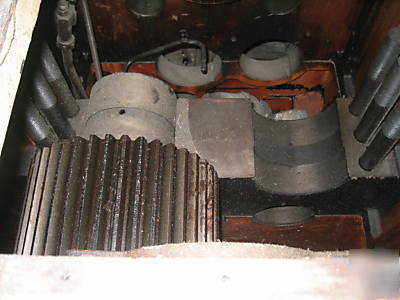

Used Extruder, Twin Screw, Leistritz, 1981, Counter-rotational, 110mm, 20/1=L/D, 150-hp, Vented with screen changer and die head setup with strand die also has spare screw elements. Extruder gear box needs repair; the gear box Leistritz number 88515, motor input 1750 RPM's and output ratio of 20:1 or Screw speed range of 5 to 100 RPM's... "note the gearbox is apart". Extruder Mfg. Paul Leistritz GmbH Nurnberg, Leister Machine type ZSE 110/2M, Number 310.0861.01, power 480v/3-phase/60hz.
Leistritz was used for compounding regrind into pellets in resin types ABS, HIPS, PP and PE all non-filled at processed between 600 to 700pph.
Last time machine run November 2006
Leistritz was removed and new 6" single 40/1 was installed.
Leistritz is currently stored in box trailer.
b.) Strand dryer - Berlyn, Model HV-1-2 Serial# 070C389 Volts 460/3/60
c.) Pelletizer 6" - Conair Jetro, (Hydraulic) Model 206, Serial# 8-063880, 48 blade solid rotor
d.) Screener - Witte, Model S-0612, Serial# 2871-2, Deck size 15-1/2" width by 42" length
Can get additional pictures/information by emailing: ****@gmail.com
FOB location: Charlotte, NC, 28201 United States "Area"
