Ue precision sensors div echoline ldp series
More of these units available upon request

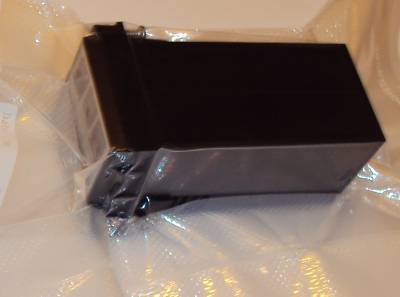

These units were in operation at the time of de-installation and are now packed and vacuum sealed
* This does not mean that the unit doesn t work, only that we have not tested or checked it out.
* This may also mean that we are not knowledgeable in this specific item.
* All Specs are from the manufature.

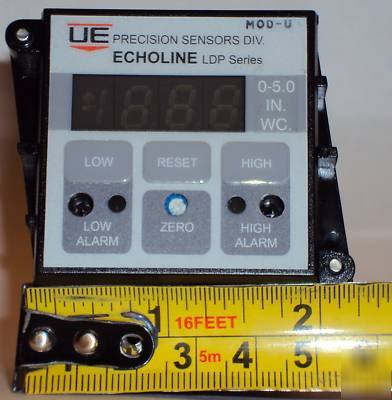

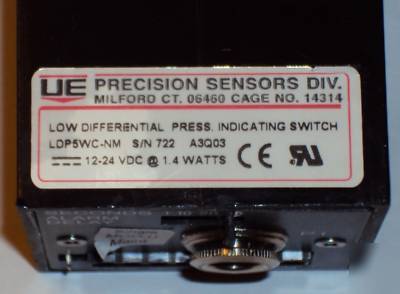

UE Precision Sensors LDP1WC-NM-M01 Echoline Low Differential Pressure Indicating Switch
comes with what you see in the pictures. If you don't see it, you probably won t get it.
very good, Used, removed from service
Low Pressure Monitor LDP ECHOLINE Series
LDP ECHOLINE was designed in cooperation with a leading semiconductor manufacturer to provide state-of-the-art low pressure monitoring of gas cabinet exhaust systems. "ECHO" (Electronic Circuit Health Output) diagnostics alert the user to loss of external power or internal electronics failure. LDP ECHOLINE s unique Maintenance Mode feature prevents false trips during ventilation system balancing. Four LDP ECHOLINE units fit into the space of one old- fashioned gauge/switch thereby reducing overall panel costs.
* Conformance to S2-0200 and CE
* Bright LED display, flash upon alarm
* High and low alarm set points
* "Maintenance Mode" to prevent false trips during ventilation system balancing

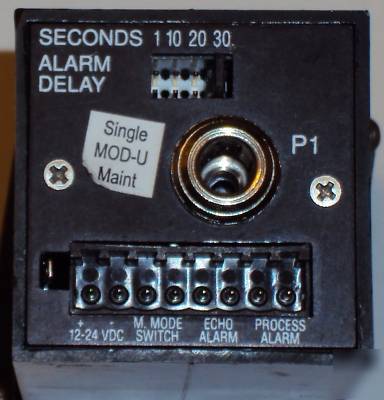

* Adjustable time delay to eliminate false trips
* Latching relay output (Option "M01" for non-latching design)
* *Optional selectable units from inches WC to Pascal
* Range: 0 to 0.2", 0.5", 1", 2", 5", 10" & 20" WC; 0 to 50, 100, 500, 1000 & 2000 Pa
* Proof Pressure: 14.5 psig 1" WC / 80" < 1" WC
* Switching Response: 1 Sec. to 30 Sec.
* Switching Output: 1A @ 30 VDC
* Switch Point: Field Adjustable
* Switch Repeatability: 0.5% F.S.
* Analog Output Option: 4 - 20 mA, 0-10 VDC
* Operating Temperature Range: 0 to 40 C
* Display Accuracy: 1% F.S., 0 to 40 C
* Minimum Operating Life: 5 Million Cycles
* Media Connections: 1/4" tubing (push to seal) / Barbed hose fitting
